Wind Generator

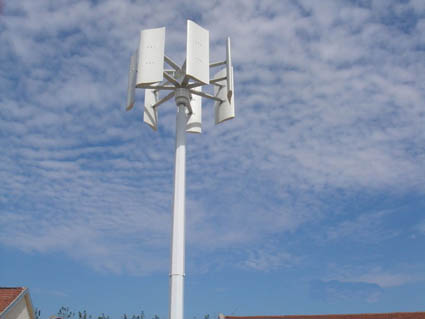

Vertical wind generator 3kw for park scenery

Model		CHFD-V-3kw
Power		3000w
Performance	Start-up wind speed	3.0m/sec
	Generating wind speed	3.0m/sec
	Rated wind speed	8.0m/sec
	Subsistence wind speed	40m/sec
Braking style	Braking system	Full automatic electronic braking system: independent dual protection
Diameter	Diameter	2.5m
	Number of blade	5pcs
	Material	Fiberglass
Generator	Model	Coreless multi-polar rare earth permanent-magnet generator
	Driving mode	Direct driving
	Rated speed	150rpm
	Rated output	3000w
	Cover material	Carbon Steel/cast metal
Pole	Length	8.0m
	Material	Cast Metal
	Coat	Powder spraying, melted galvanizing
Controller	System	Charger+inverter
Total weight	Wind generator+pole	(Battery, Control box)



		wind generator The specification of 3KW wind generator vertical electric motors generator for wind turbine: 1)Higher efficiency 2) good to start wind turbine at lower wind speed 3)Excellent heat eliminatio generator for wind turbine Rated Voltage 12-380V Gearbox No,direct driven Generator type 3 phase permanent magnet Line to Line voltage 0-500V
Power		3kw
Blade Material		FRP
Szie of blade(H*W) MM		2400(height)
Quantity of the blades		5
Diameter (MM)		2200
generator		PMG
Rated wind speed		10m/s
Rated power		3KW
Start up wind speed		2.5(m/s)
Security wind speed		40(m/s)
Output controller system		charger and inverter
Capacity and quantity of battery		18PCS
