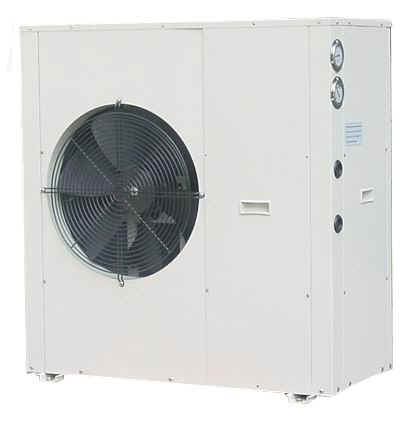

Air cooled heat pump(chiller)

If it is not possible to drill in a ground probe or install a surface absorber on the property, then you should choose an outside air heat pump.This converts the energy of the outside air into heat and creates a comfortable temperature inside the house. Although none of the outside air heat pumps that are available on the market, can cover the heating requirements all year round, this type of heat pump does offer economic benefits. If the outside temperature drops to around minus fifteen degrees centigrade, then the energy content of the cold air becomes so small that the heat pump can””not provide further economic advantages. Therefore, a complementary oil-fired or electric boiler must be integrated. In general the economic benefits of an outside air heat pump depend on the local climatic conditions.

·Galvanized sheet

·Adopt Simens Polycool controller

Technical parameter

HEAT PUMP
LSQ08R1/C1
LSQ10R1/C1
LSQ08R1/C3
LSQ10R1/C3
Heat output/Power consumption at 7C/35C
kW
8.7/2.3
11.1/3.2
8.7/2.2
11.1/2.9
Heat output/Power consumption at 7C/45C
kW
8.5/2.7
10.9/3.7
8.5/2.6
10.9/3.4
Heat output/Power consumption at 7C/55C
kW
8.3/3.2
10.7/4.6
8.3/3.1
10.7/4.2
Heat output/Power consumption at 2C/35C
kW
7.6/2.2
9.7/3.3
7.6/2.1
9.7/2.9
Heat output/Power consumption at 2C/45C
kW
7.5/2.7
9.6/3.5
7.5/2.6
9.6/3.1
Heat output/Power consumption at -7C/35C
kW
5.7/2.1
7.3/3.0
5.7/2.0
7.3/2.6
Heat output/Power consumption at -7C/45C
kW
5.6/2.6
7.2/3.4
5.6/2.5
7.2/3.1
Cool output/Power consumption at 35C/7C
kW
8/2.8
9.8/3.45
8/2.6
9.8/3.25
Starting current
A
25
36
40
48
Soft-start relay
.
optional
-
Power
.
230V/1PH/50Hz
380V/3PH/50Hz
Compressor
.
Scroll
Condenser
.
Brazed plate heat exchanger
Nominal flow heating medium
l/s
0.42
0.52
0.42
0.52
Internal pressure drop at nominal flow
kPa
7
12
7
12
Air flow
m3/h
3000
3000
3000
3000
Nominal output fan
W
220
220
220
220
Max outgoing heating medium temperature
”ę
.
.
.
.
Dimensions(HxWxD)
mm
1050x1000x450
Pipe connector
.
DN25
Weight
kg
115
120
115
120
