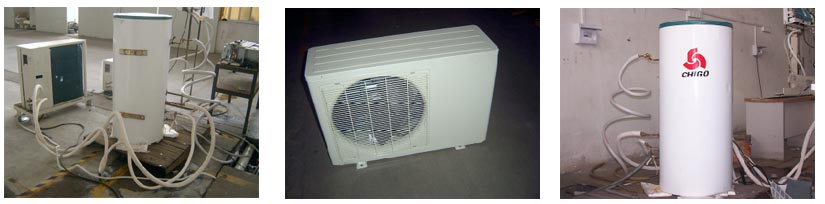

LUFT /VANN DC INVERTER
|
specification
of chigo dc inverter heat pump water heater |
|
|
|
|
|
|
CG-090211 |
| model |
KRS-VX4W3AH3L |
KRS-VX5.6W3AE2L |
KRS-VX8W3ATL |
|
|
| specification |
| main body |
heating
capacity |
kW |
4,0 |
5,6 |
8,0 |
|
|
| heating consuming power |
kW |
0,68 |
1,03 |
1,76 |
|
|
| heating input power |
A |
2,96 |
4,48 |
7,65 |
|
|
| Max.heating consuming power |
kW |
1,46 |
2,35 |
3,69 |
|
|
| Max.input current |
A |
6,35 |
10,2 |
16,05 |
|
|
| COP（coefficient of
performance） |
W/W |
5,88 |
5,44 |
4,55 |
|
|
| refrigerant |
type |
R410A |
R410A |
R410A |
|
|
| throttling way |
electronic
expansion valve |
electronic
expansion valve |
electronic
expansion valve |
|
|
| charge volume |
kg |
1,0 |
1,5 |
2,2 |
|
|
| power source |
V/HZ |
220-240/50 |
220-240/50 |
220-240/50 |
|
|
| input power |
kW |
0,68 |
1,03 |
1,76 |
|
|
| input current |
A |
2,96 |
4,48 |
7,65 |
|
|
| specification of electronic expansion valve |
DPF1.65C |
DPF1.65C |
DPF1.8C |
|
|
| compressor |
type |
(SANYO)C-6RVN93H0N |
(SANYO)C-6RZ146H1A |
(SANYO)C-7RVN153HOW |
|
|
| quantity |
pcs |
1 |
1 |
1 |
|
|
| noise |
dB(A） |
≤57 |
≤60 |
≤60 |
|
|
| net weight |
kg |
36,0 |
42,0 |
65,0 |
|
|
| outlook dimension |
LXWXH |
mm |
795×255×540 |
850×295×605 |
900×330×835 |
|
|
| water tank |
hot
water output |
m3/h |
0,12 |
0,16 |
0,22 |
|
|
water tank |
cubage |
L |
150 |
200 |
300 |
|
|
| length of copper pipe |
m |
25 |
30 |
30 |
|
|
| dimension |
ΦXH |
Φ470X1070 |
Φ570X1400 |
Φ570X1800 |
|
|
| packing dimension |
LXWXH |
570X550X1090 |
660X940X1430 |
660X940X1830 |
|
|
auxilary electric heater |
power |
kW |
|
|
|
|
|
| current |
A |
|
|
|
|
|
| (way of power source supply) |
connected
to outdoor unit |
connected
to outdoor unit |
connected
to outdoor unit |
connected
to outdoor unit |
connected
to outdoor unit |
| note：①testing condition： |
| heating：outdoor dry bulb
temp.20℃，wet bulb temp.15℃；initial
temp.15℃，final temp.55℃。 |
|
 |
|
| |
| |
|
