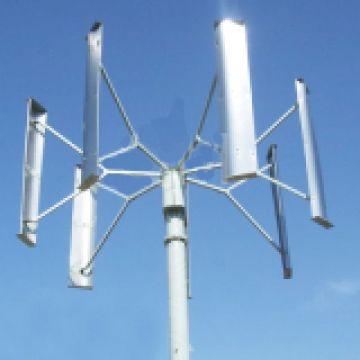

Vertical Axis Wind Turbine   (Generator 20KW

• QM VAWT(Vertical Axis Wind Turbine(Generator)) 20KW
•
• QM-VAWT-20KW(20KW vertical axis wind turbine) has tow types, with gear box and directly dirve. High effiecency of 90% with our 10KW VAWT with no gear box
•
• QM-VAWT-20KW/100RPM is with gearbox, high efficency, Off/On grid system for customers to choose, long term warranty for cusotmers to use.
•
• QM has advanced equipments(ABB TEST equipment for wind turbine(power) generator) and manufacture process, completed quality management system(Samsung proven) and excellent technical team(Experts on Vertical Axis Wind Turbine/Generator/Blades/Electronic System) to provide high quality and environmental protection wind generator and improved power supply solution and first-class after service for customers. We can supply long time warranty than other suppliers.
•
• The wind generator are all made of NdFeB that We produces since 1996. The specific outer rotor magnetic circuit is designed in a way that the products have high generating efficiency, light weight, low starting torque, appealing appearance, easy installation and higher electric performance and use performance than the kindred products.
•
• Technical parameter, power curve, and other details of our wind generator will be pesented to customers, so Please contact me if you are interesting on our wind generators.
• QM-VAWT-20KW/100RPM TECHNICAL PARAMETER
•
•
• Power 20KW
• The diameter of wind wheel 6m
• Numbers of blade 9PCS
• Rated rotate speed 100r/min
• Maximum Speed 120r.min
• Start up wind speed 4m/s
• Working wind speed 4--20m/s
• Security wind speed 40m/s
• Rated wind speed 10m/s
• Rated power 20kw
• The max power 22kw
• Output voltage(DC) 220/280v
• The height of tower/weight 15m/2700kg
• The top part weight 1100kg
• Output control system charger control inverte
