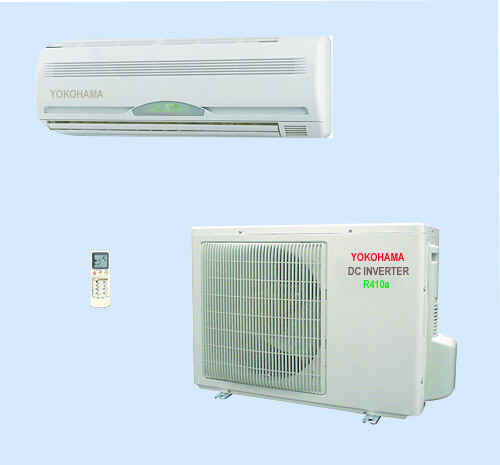

Name: YOKOHAMA 12000BTU-DC INVERTER
  MATSUSHITA  ROTAY COMPRESSOR
Introduction:

18000 BTU

R410A DC INVERTER 12000      SPECIALY MADE FOR COLD CLIMATE

Model
Factory Model
Power supply Ph-V-Hz 1, 220-240V~, 50Hz
Cooling Capacity Btu/h 12000(2350-14600)
Input W 1070(270-1750)
Rated current A 4.8(1.5~8.5)
EER Btu/w.h,W/W 12, 3.56
Heating Capacity Btu/h 14000(2800-17000)
Input W 1120(260-2050)
Rated current A 5.1(1.5-10.0)
COP W/W 12.58 ,3.7
Moisture Removal L/h 1.2
Max. input consumption W 2550
Max. current A 12
Starting current A 18
Compressor Model   5RA102XAA
Type   ROTAY
Brand   MATSUSHITA
Capacity Btu/h 11840
Input W 1150
Rated current(RLA) A 5.2
Locked rotor Amp(LRA) A 50
Capacitor uF No
Refrigerant oil ml 360
Indoor fan motor Model
Brand
Input W 51.5
Capacitor uF 1.5
Speed(hi/mi/lo) r/min 1300/1000/900
Indoor coil a.Number of rows   2
b.Tube pitch(a)x row pitch(b) mm 21x13.37
c.Fin spacing mm 1.3
d.Fin type (code)   Hydrophilic aluminium
e.Tube outside dia.and type mm φ7,innergroove tube
f.Number of circuits   2
Indoor air flow (Hi/Mi/Lo) m3/h 640/520/420
Indoor noise level (Hi/Mi/Lo) dB(A) 42/35/30
Indoor unit Dimension (W*H*D) mm 785270200
Packing (W*H*D) mm 860315295
Net/Gross weight Kg 10.0/12.0
Outdoor fan motor Model
Brand
Input W 68
Capacitor uF 2
Speed r/min 900
Outdoor coil a.Number of rows   2
b.Tube pitch(a)x row pitch(b) mm 25.4x22
c.Fin spacing mm 1.5
d.Fin type (code)   Hydrophilic aluminium
e.Tube outside dia.and type mm Ф9.53
Outdoor air flow m3/h 1900
Outdoor noise level dB(A) 55
Outdoor unit Dimension(W*H*D) mm 800X550X250
Packing (W*H*D) mm 890X655X360
Net/Gross weight Kg 42/45
Refrigerant type R410A g 1140
Design pressure MPa 4.2
Refrigerant piping Liquid side/ Gas side mm(inch) Ф6.35/Ф12.7
Max. refrigerant pipe length m 10
Max. difference in level m 5
Connection wiring   No
Plug type   16A
Thermostat type   Electrolic control
Operation temp 17 - 30
Ambient temp -15 - 43
Application area m2 20-30
